TWF - Perforadoras rotatorias

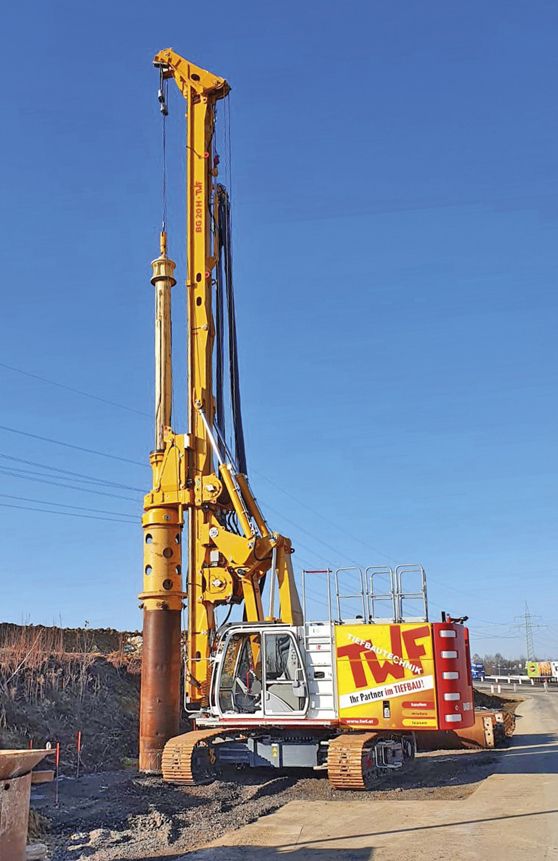

BAUER Perforadoras rotatorias

Somos el socio exclusivo de alquiler de perforadoras rotatorias BAUER en ALEMANIA y AUSTRIA.

Para las perforadoras rotatorias BAUER, los siguientes principios tienen la máxima prioridad:
Logo Mietpartner
  • Listen Icon Rot
    Calidad
  • Listen Icon Rot
    Eficiencia económica y rendimiento
  • Listen Icon Rot
    Niveles de servicio del más alto nivel
  • Listen Icon Rot
    Niveles de seguridad del más alto nivel
  • Listen Icon Rot
    Sostenibles y respetuosas con el medioambiente
  • Listen Icon Rot
    Larga vida útil
Perforadoras rotatorias
Perforadoras rotatorias
Logo TWF Mietpartner

Alquiler - BAUER Perforadoras rotatorias

BAUER BG 15 H

BAUER BG 15 H

  • Cabezal de rotación:
    145 kNm
  • Diametro max. encamisado:
    880 mm
  • Peso:
    ≈ 52 t
  • Máquina base:
    BT 50
  • Motor:
    CAT C 7.1, 186 kW
Solicitud de oferta

BAUER BG 15 H

  • Cabezal de rotación:
    145 kNm
  • Diametro max. encamisado:
    880 mm
  • Peso:
    ≈ 52 t
  • Máquina base:
    BT 50
  • Motor:
    CAT C 7.1, 186 kW
Solicitud de oferta
BAUER BG 15 H
BAUER BG 20 H

BAUER BG 20 H

  • Cabezal de rotación:
    200 kNm
  • Diametro max. encamisado:
    1500 mm
  • Peso:
    ≈ 53 t
  • Máquina base:
    BT 50
  • Motor:
    CAT C 7.1, 186 kW
Solicitud de oferta

BAUER BG 20 H

  • Cabezal de rotación:
    200 kNm
  • Diametro max. encamisado:
    1500 mm
  • Peso:
    ≈ 53 t
  • Máquina base:
    BT 50
  • Motor:
    CAT C 7.1, 186 kW
Solicitud de oferta
BAUER BG 20 H
BAUER BG 23 H

BAUER BG 23 H

  • Cabezal de rotación:
    235 kNm
  • Diametro max. encamisado:
    1500 mm
  • Peso:
    ≈ 70 t
  • Máquina base:
    BT 65
  • Motor:
    CAT C 7.1, 225 kW
Solicitud de oferta

BAUER BG 23 H

  • Cabezal de rotación:
    235 kNm
  • Diametro max. encamisado:
    1500 mm
  • Peso:
    ≈ 70 t
  • Máquina base:
    BT 65
  • Motor:
    CAT C 7.1, 225 kW
Solicitud de oferta
BAUER BG 23 H
BAUER BG 28 H

BAUER BG 28 H

  • Cabezal de rotación:
    280 kNm
  • Diametro max. encamisado:
    1600 mm
  • Peso:
    ≈ 89 t
  • Máquina base:
    BT 75
  • Motor:
    CAT C 9.3, 310 kW
Solicitud de oferta

BAUER BG 28 H

  • Cabezal de rotación:
    280 kNm
  • Diametro max. encamisado:
    1600 mm
  • Peso:
    ≈ 89 t
  • Máquina base:
    BT 75
  • Motor:
    CAT C 9.3, 310 kW
Solicitud de oferta
BAUER BG 28 H
BAUER BG 33 H

BAUER BG 33 H

  • Cabezal de rotación:
    300 kNm
  • Diametro max. encamisado:
    1600 mm
  • Peso:
    ≈ 102 t
  • Máquina base:
    BT 85
  • Motor:
    CAT C 13, 354 kW
Solicitud de oferta

BAUER BG 33 H

  • Cabezal de rotación:
    300 kNm
  • Diametro max. encamisado:
    1600 mm
  • Peso:
    ≈ 102 t
  • Máquina base:
    BT 85
  • Motor:
    CAT C 13, 354 kW
Solicitud de oferta
BAUER BG 33 H
BAUER BG 36 H

BAUER BG 36 H

  • Cabezal de rotación:
    385 kNm
  • Diametro max. encamisado:
    1.600 / 2.500 mm
  • Peso:
    ≈ 118 t
  • Máquina base:
    BS 95
  • Motor:
    CAT C 15, 403 kW
Solicitud de oferta

BAUER BG 36 H

  • Cabezal de rotación:
    385 kNm
  • Diametro max. encamisado:
    1.600 / 2.500 mm
  • Peso:
    ≈ 118 t
  • Máquina base:
    BS 95
  • Motor:
    CAT C 15, 403 kW
Solicitud de oferta
BAUER BG 36 H

Accesorios opcionales

  • Videos
Perforación con Kelly
Perforación CFA
  • Contacto

  • Videos Assistance Systems - BAUER Rotary Drilling Rigs

Stability Plus

Our Stability Plus assistant compares parameters that are relevant for the stability of the drilling rig in real time: outreach, mast inclination and upper carriage speed. Using the B-Tronic, the equipment operator can activate the different stabilities and thus achieve higher outreach with lighter equipment and increase the work front by up to 100% with absolutely secured stability.

Video Stability Plus
Kelly visualization

Using Kelly visualization, permitted locking device positions are shown on the display during extension and retraction of the Kelly bar. The operator identifies the correct unlocking of the Kelly segments, which can prevent potential damages to the Kelly bar or equipment

Video Kelly visualization
Adaptive Kelly speed assistant

Automatic control of the optimal winch speed during extension and retraction of the Kelly bar ensures safe lifting and lowering. This provides relief for the operator while also increasing drilling performance and productivity. Decreasing the speed at the joints reduces wear, thereby conserving resources. The safety stop function when pulling up the locked Kelly bar prevents the Kelly from falling through and thus prevents damage.

Video Kelly Visualization
Crowd Plus

For fully cased drilling, large drilling diameters and drilling depths, it was generally necessary to use casing oscillators in the past. The result: considerable deterioration in performance and high costs. The Crowd Plus assistance system increases retraction forces through safe and electronically synchronized pulling with the main and pull-down winches.

Video Crowd Plus
Automatic torque setting

The limitation of the maximum torque prevents unpermitted loads and resulting damages to the Kelly bar. The automatic torque setting assists the equipment operator when selecting potential Kelly bars and (for gearboxes) permitted switching steps.

Video Automatic torque setting
Kelly drilling assistant

The Kelly drilling assistant saves the deviation of the control lever and keeps the speed of the top drive (KDK) and crowd winch constant. The drilling parameters can be adjusted continually to the soil conditions during drilling. This provides considerable relief for the operator, which is especially crucial for longer periods of drilling work in rock or hard soils. At the same time, the drilling performance is enhanced.

Video Kelly drilling assistant
Automatic crowd control

The automatic crowd control monitors the pressure of the top drive (KDK). If the maximum value is reached, the crowd pressure is automatically reduced. A crowd pressure oriented based on the torque enhances drilling performance and reduces wear on the drilling tool. This assistant can be used for drilling as well as pre-drilling.

Video Automatic crowd control
One-directional spoil discharge assistant

The one-directional spoil discharge assistant automatically empties the drilling tool through a rotational discharge movement of the top drive (KDK). It operates quickly and efficiently, which saves time and improves productivity. Easy, intuitive activation of the assistant and adjustable discharge intervals provide relief for the operator and the equipment itself.

Video One-directional spoil discharge assistant
Bi-directional spoil discharge assistant

Using the bi-directional spoil discharge assistant, the drilling tool is automatically emptied quickly and thoroughly using an alternating rotational movement of the rotary drive. Particularly for the operation of drilling buckets, optimized emptying provides relief for the equipment operator. Additional bonus points apart from time savings are the increased drilling capacity and minimization of strain on the drilling rig.

Video Bi-directional spoil discharge assistant
Speed Limiter

The speed limiter restricts the main winch speed while the drilling tool is being pulled upwards using the Kelly bar. This reduces the risk of a partial vacuum or hydraulic ground failure. Specifications can be kept within the limits and documented.

Video Speed Limiter
Swivel angle warner

The swivel angle is displayed on the B-Tronic screen. This enables secure swiveling even under tight spatial conditions. If the angle comes close to the preconfigured limits to the left and right of the drilling rig, the operator receives an acoustic warning. This represents a significant gain in safety, particularly for urban sites and sites with limited space. The movement is only switched off with the swivel angle limiter.

Video Swivel angle warner
Casing assistant

The casing assistant achieves optimized turning in and pulling of the casing with an alternating movement of the top drive (KDK). This provides relief for the operator, who can activate the assistant by pressing a button and adjust the rotation interval of the top drive. This uniformity also offers an advantage for the construction of exposed concrete piles.

Video Casing assistant
Automatic mast alignment with memory function

The equipment mast is automatically positioned at a predefined point. Using the automatic mast alignment with memory function, any two mast alignments can also be saved and approached. This replaces the manual control and fine-tuning of the mast position, facilitates the operator's work and saves time as well as costs.

Video Automatic mast alignment with memory function
Deploying the swivel with slack rope

Activating the freewheel function with this assistance system causes the swivel to be automatically deployed. The result: Rope damages and slack rope are prevented, since the main winch stops when lowering as soon as the tension force falls below the set value.

Video Deploying the swivel with slack rope
Swivel angle limiter

The B-Tronic screen shows the swivel angle. This enables secure swiveling even under tight spatial conditions. If the equipment comes close to the preconfigured limits to the left and right, the equipment operator receives an acoustic warning. In addition, the upper carriage is first slowed down, then stopped when reaching the swivel angle. This represents a significant gain in safety, particularly for urban sites and sites with limited space.

Video Swivel angle limiter
